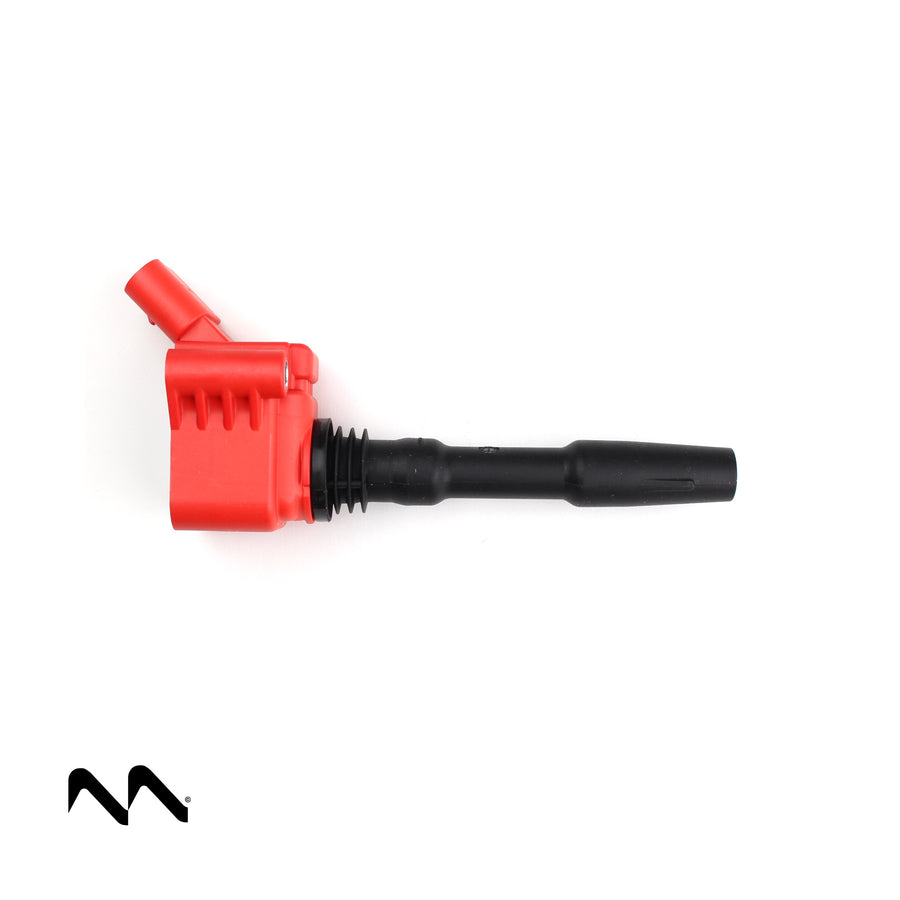

4.0 TFSI V8 (EA825) Performance Ignition Coils — Audi RS, Porsche, Bentley & Lamborghini
The Volkswagen Group's EA825 4.0 TFSI V8 is one of the most widely-shared premium engines on the road — powering the Audi RS6, RS7, RSQ8, S8, Porsche Cayenne / Panamera V8, Bentley Continental GT V8, Bentayga V8, Lamborghini Urus, and VW Touareg V8. All of them run the same coil-on-plug assembly, and all of them work it hard under boost. MTP-1003 is a direct plug & play replacement engineered in the UK, delivering 12% more spark energy across all 8 cylinders — a straight swap with better heat handling and cleaner ignition at full boost.
- Years
- 2013 – 2026
- Chassis
- C8 · D5 · 9YA · 971 · Type 3S · 4M · Urus etc.
- Engine code
- DJPB · CEUC · CTGE · CVUB · CWUC · DCBB · DTA
- Engine
- 4.0 TFSI V8 twin-turbo
- Power
- 420 – 657 bhp
- Coils needed
- 8 × Mantis MTP-1003 - VAG 1.8-4.0 TFSI Top-Hat Performance Ignition Coil (Golf R, S3, RS3, RS6, RS7, Cayenne 3.0T)
Set includes all 8 coils. Only need one? Choose "Just 1 coil" if you're replacing a single failed unit.
Signs your 4.0 TFSI V8 (EA825 platform) needs new coils
- Misfire codes P0301–P0308 on VCDS, OBDeleven or a generic OBDII scanner
- Rough idle when cold — especially first-thing in the morning
- Noticeable loss of top-end pull above 4,500 rpm
- Fuel economy dropping without another explanation
- Intermittent check-engine light that clears on next start
- Boost feeling "flat" on hard throttle in mid-range
Installation notes
Direct plug & play — no coding, no VCDS work required, identical fitment across all EA825 variants. Access the coils by removing the engine cover (8mm bolts, or Torx on some Porsche variants). Because all these engines are V8, always replace as a set of 8 — mixed-age coils cause uneven spark distribution and the ECU pulls timing to compensate, negating the performance benefit of the new units. Torque coil bolts to 8 Nm. Total install time: 30–45 minutes on Audi, slightly longer on Porsche Panamera / Cayenne due to intake plumbing.
Common questions
Will this fit my RS6 / RS7 / Cayenne V8 / Urus without coding?
Yes. Direct plug & play replacement — the ECU reads MTP-1003 identically to the OE VAG coil. No coding, no VCDS or OBDeleven work needed on any EA825 variant.
Do I really need all 8, or can I just replace one?
We strongly recommend replacing all 8 as a set. If one coil has failed, the others have seen identical heat and hours — they're likely close behind. Mixed-age coils cause uneven spark, and the ECU compensates by pulling timing, which loses the performance benefit of the new coils. That said, if you're in a bind and just need to get moving, one MTP-1003 will absolutely work as a temporary fix.
What's the difference vs the OEM VAG coil?
12% more spark energy from a redesigned primary winding, better heat dissipation in the top-hat body, and UK-engineered QA. Same physical fit, same connector, same wiring — a straight swap. Especially valuable on tuned Urus / RS6 / Cayenne where cylinder pressures exceed OE spec.
This coil also fits
Full application list — all 4.0 TFSI EA825 V8 platforms:
- Audi RS6 C8 (2019+) — 600 bhp
- Audi RS7 C8 (2019+) — 600 bhp
- Audi RS Q8 (2020+) — 600 bhp
- Audi S6 / S7 C8 (2019+) — 444 bhp
- Audi S8 D5 (2019+) — 563 bhp
- Audi SQ7 / SQ8 (petrol) — 500 bhp
- Porsche Cayenne S / Turbo / Turbo GT (9YA/9YB, 2018+) — 434-670 bhp
- Porsche Panamera Turbo / GTS (971, 2016+) — 460-620 bhp
- Bentley Continental GT V8 / Continental GTC V8
- Bentley Bentayga V8
- Lamborghini Urus / Urus Performante — 641-657 bhp
- VW Touareg 4.0 V8 TDI/TSI (CR7, 2015+)
OE cross-references
These are the original manufacturer part numbers this coil directly replaces. Check the number stamped on your existing coil against this list before ordering to confirm your fitment.
Ready to fit your Audi / Porsche / Bentley / Lamborghini 4.0 TFSI V8 (EA825 platform)?
Full set · £239.92 · UK dispatch · Direct plug & play
