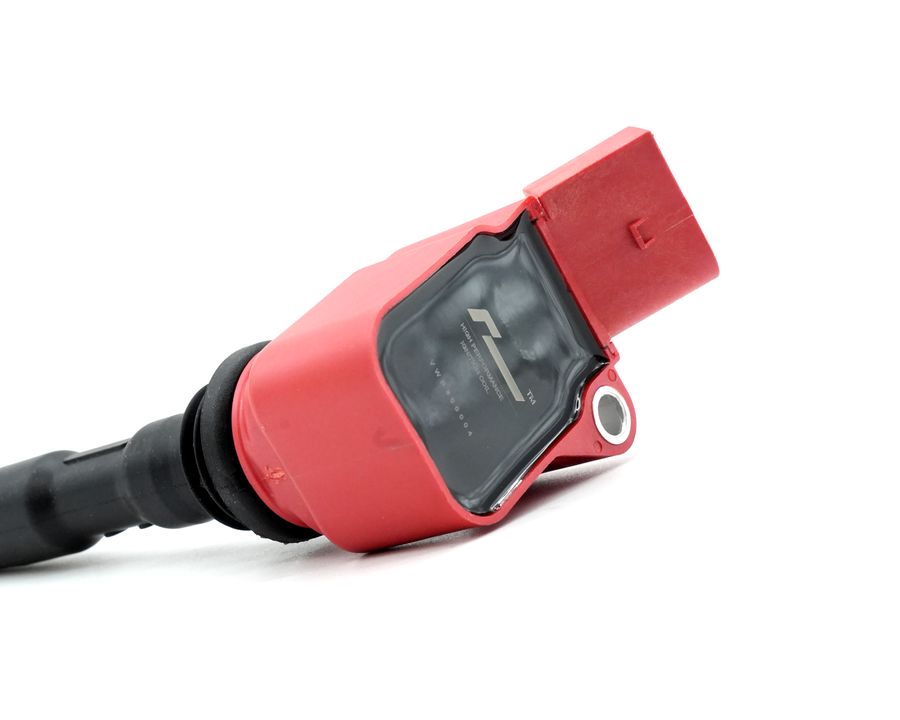

Toyota GT86 (ZN6), Subaru BRZ (ZC6), Forester XT & FB-series — Performance Ignition Coils
The Toyota GT86 / Subaru BRZ Mk1 is a proper cult car — flat-4 boxer, rear-drive, no turbo, no gimmicks — and every serious owner has spent a winter chasing cold-start misfires and 4,000 rpm flat-spots. The same FA20 lives in the Scion FR-S; the FA20DIT turbo powers the Forester XT SJ; and the FB20 / FB25 naturally-aspirated boxers run in Forester, Outback, Legacy, XV/Crosstrek and Impreza GP. All of them share one Diamond Electric coil-on-plug — Family A, rectangular connector. MTP-1015 is a direct plug & play replacement engineered in the UK, delivering 12% more spark energy across all four cylinders — the fix for the FA20's well-documented weak-spark issues under load.
- Years
- 2012 – 2021
- Chassis
- ZN6 · ZC6 · SJ · BS · BR · GP
- Engine code
- FA20 · FA20DIT · FB20 · FB25
- Engine
- 2.0 / 2.5 flat-4 boxer (NA + FA20DIT turbo)
- Power
- 148 – 250 bhp
- Coils needed
- 4 × Mantis MTP-1015 - Subaru / Toyota FA & FB Boxer Performance Ignition Coil (86 / GR86 / BRZ / WRX)
Set includes all 4 coils. Only need one? Choose "Just 1 coil" if you're replacing a single failed unit.
Signs your FA20 · FA20DIT · FB20 · FB25 boxer platforms needs new coils
- Misfire codes P0301–P0304 on a generic OBDII scanner or Torque Pro
- Cold-start stumble — the classic FA20 "won't clear its throat" symptom
- Flat-spot at 4,000 rpm on GT86 / BRZ — often blamed on the notorious torque dip, actually a weak coil
- FA20DIT Forester XT losing boost consistency on hot runs
- Rough idle after E85 fill-ups on tuned cars
- Intermittent engine light that clears after a restart
Installation notes
Direct plug & play — no coding, no Subaru Select Monitor session required, identical fitment across all FA20 / FA20DIT / FB20 / FB25 boxer engines with the rectangular-connector coil (Family A). Access is easy on the flat-4 — coils sit vertically on top of each valve cover, two per side. Single 10mm bolt per coil, unclip the connector, lift out, drop the MTP-1015 in, torque to 7 Nm. Always replace as a set of 4 — mixed-age coils cause uneven cylinder-to-cylinder combustion and the ECU pulls timing globally to protect the weakest cylinder, negating the performance benefit of the new units. Track and rally use — where the FA20 lives most of its life — makes fresh coils a scheduled service item, not a fix-when-broken part. Total install time: 20–30 minutes.
Common questions
Will this fit my GT86 / BRZ / Forester XT without coding?
Yes. Direct plug & play replacement — the Subaru / Toyota ECU reads MTP-1015 identically to the OE Diamond Electric coil (22433-AA650 family). No coding, no Subaru Select Monitor, no ECUTEK re-flash needed. Applies to all Family A rectangular-connector applications listed below.
Do I really need a full set of 4, or can I just replace one?
We strongly recommend all 4 as a set. The FA20 in particular is famously sensitive to cylinder-to-cylinder spark balance — one weak coil throws off the boxer's already-uneven firing order and the ECU compensates by pulling timing across the board, which erases the performance benefit of the new part. If you're pit-lane stuck on trackday, one MTP-1015 will get you home, but the set is the correct fix.
Does this fit my GR86 (ZN8) or newer BRZ (ZD8)?
No — GR86 ZN8 and BRZ ZD8 use the newer FA24 with a different Denso coil family (triangular connector, AA720 / AA730 / AA740 pattern), which is a separate physical part. MTP-1015 covers Family A only: GT86 ZN6, BRZ ZC6, Scion FR-S, plus the whole FB-series NA boxer range and the FA20DIT Forester XT. Family B (ZN8 / ZD8 / newer WRX VB) is on our next-order roadmap as a separate SKU.
This coil also fits
Full application list — Subaru FA20 / FA20DIT / FB20 / FB25 boxer (Diamond Electric Family A):
- Toyota GT86 ZN6 (2012–2021) — 200 bhp FA20
- Subaru BRZ ZC6 (2012–2021) — 200 bhp FA20
- Scion FR-S (2013–2016, US market) — 200 bhp FA20
- Subaru Forester XT SJ 2.0DIT (2014–2018) — 240 bhp FA20DIT turbo
- Subaru Forester SJ 2.5 FB25 (2013–2018)
- Subaru Outback BS 2.5 FB25 (2013–2019)
- Subaru Legacy BR 2.5 FB25 (2013–2019)
- Subaru XV / Crosstrek 2.0 FB20 (2013–2017)
- Subaru Impreza GP 2.0 FB20 (2011–2016)
Does NOT cover: GR86 ZN8, BRZ ZD8, WRX VB, newer Crosstrek — those use the triangular-connector Denso Family B coil.
OE cross-references
These are the original manufacturer part numbers this coil directly replaces. Check the number stamped on your existing coil against this list before ordering to confirm your fitment.
Ready to fit your Subaru / Toyota / Scion FA20 · FA20DIT · FB20 · FB25 boxer platforms?
Full set · £159.96 · UK dispatch · Direct plug & play
