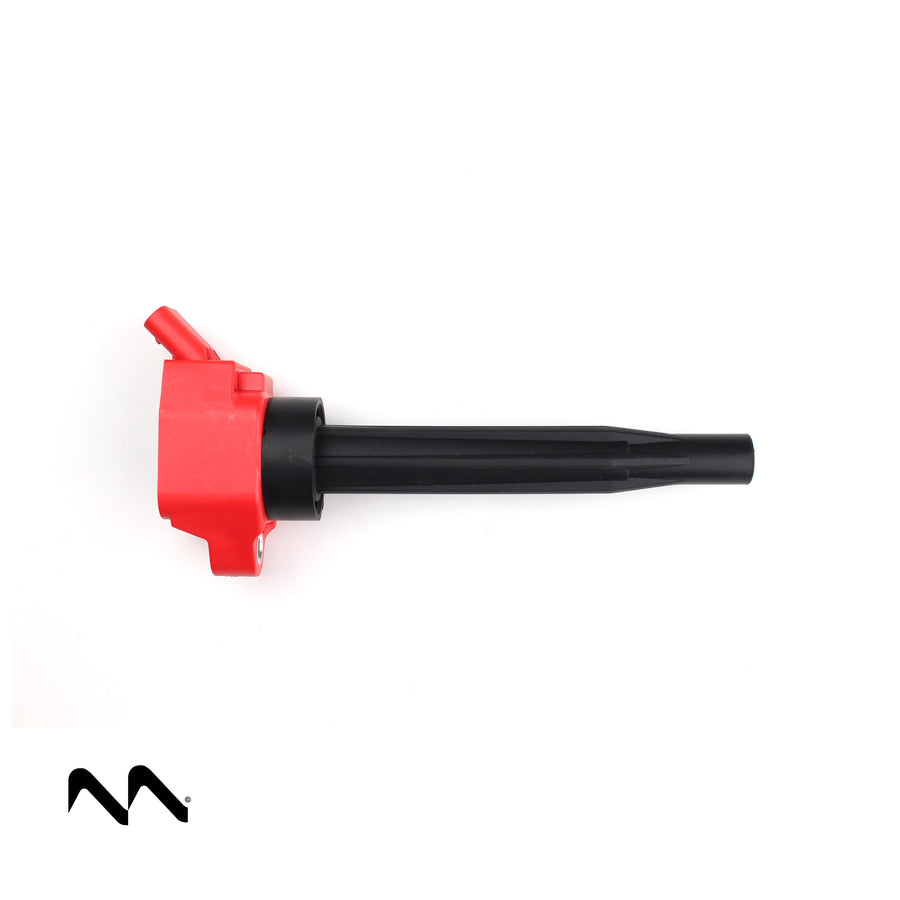

Hyundai i20 N, Veloster Turbo, Kona 1.6T & Kia Ceed GT — 1.6 T-GDI Performance Ignition Coils
The Hyundai i20 N is what many people agree may be the last true compact hot hatch - a punchy 1.6 turbo with a proper mechanical LSD, in a car small enough to actually enjoy on a British B-road.
The Hyundai Motor Group's 1.6 T-GDI powers a whole generation of hot and warm Hyundais and Kias - from the Gamma-engined Veloster Turbo, Ceed GT and Kona 1.6T through to the Smartstream-era i20 N, Kona N-Line and Tucson.
Both generations share the same OE ignition coil (27301-2M417), and both are hard-working small-turbo fours with well-documented coil weakness on cold cranks and mid-boost.
MTP-1005 is a direct plug & play replacement, UK-engineered with 12% more spark energy through a redesigned neodymium primary winding. Same fit, same connector — no coding, no compromise.
- Years
- 2012 – 2026
- Chassis
- BC3 (i20 N) · FS (Veloster) · OS / SX2 (Kona) · TL / NX4 (Tucson) · JD / CD (Ceed GT)
- Engine code
- G4FJ / G4FP
- Engine
- 1.6 T-GDI 4-cyl turbo
- Power
- 177 – 204 bhp
- Coils needed
- 4 × Hyundai Kia 1.6T Performance Ignition Coil for i20 N, Kia Ceed GT and Hyundai Veloster 1.6 T-GDI - Mantis MTP-1005
Set includes all 4 coils. Only need one? Choose "Just 1 coil" if you're replacing a single failed unit.
Signs your 1.6 T-GDI — Gamma (G4FJ) & Smartstream (G4FP) needs new coils
> Misfire codes P0301–P0304 on OBDII
> Rough cold-start idle, first-thing cough
> Loss of pull between 3,000–5,000 rpm (classic tuned-Gamma symptom)
> Stumble on hard throttle after a Stage 1 remap
> Occasional CEL that clears on next start
Installation notes
Direct plug & play — no coding, no dealer tools required. Remove the plastic engine cover, disconnect the coil connectors (push-tab, then pull), single 10mm bolt each coil, coils lift straight out. Replace as a set of 4 — mixed-age coils cause uneven spark and the ECU pulls timing to compensate, killing the performance benefit on tuned cars. Torque to 8 Nm. Total install: 10–15 minutes.
Common questions
Does MTP-1005 fit the Hyundai i20 N?
Yes — direct fit. The i20 N's Smartstream 1.6 T-GDI (G4FP) uses the same OE coil (27301-2M417) as the earlier Gamma engines, verified against Hyundai's own parts catalogue. Plug & play, no coding — replace as a set of 4.
Will these fit my Veloster Turbo or Ceed GT without coding?
Yes. Direct plug & play — the ECU reads MTP-1005 identically to the OE Hyundai/Kia part (27301-2M417). No coding, no GDS work required.
What's the difference vs the OE Hyundai coil?
12% more spark energy from a redesigned neodymium primary winding, better heat dissipation, and UK-engineered QA. Same physical fit, same connector — a straight swap for OE 27301-2M417 with headroom for tuned use.
This coil also fits
Full application list — Hyundai / Kia 1.6 T-GDI (Gamma & Smartstream):
> Hyundai i20 N (BC3, 2020–2026)
> Hyundai Veloster Turbo 1.6 (FS, 2012–2017)
> Hyundai Kona 1.6T (OS, 2018–2020)
> Hyundai Kona N-Line 1.6T (OS facelift, 2021–2023)
> Hyundai Kona N-Line 1.6T (SX2, 2023–2026)
> Hyundai Santa Fe 1.6 T-GDI PHEV (TM, 2021–2024)
> Hyundai Tucson 1.6 T-GDI (TL, 2016–2020)
> Hyundai Tucson 1.6 T-GDI (NX4, 2021–2026)
> Hyundai Sonata 1.6T (LF & DN8, US-spec)
> Hyundai Elantra GT N Line 1.6T (US-spec)
> Kia Ceed GT 1.6T (JD, 2013–2018)
> Kia Ceed / Proceed GT (CD, 2019+)
> Kia Soul Turbo / GT-Line 1.6T (US-spec)
> Kia Cerato GT 1.6T (AU)
> Kia Forte GT 1.6T (US)
Both engine generations share OE coil 27301-2M417 — one part covers the full range.
OE cross-references
These are the original manufacturer part numbers this coil directly replaces. Check the number stamped on your existing coil against this list before ordering to confirm your fitment.
Ready to fit your Hyundai / Kia 1.6 T-GDI — Gamma (G4FJ) & Smartstream (G4FP)?
Full set · £159.96 · UK dispatch · Direct plug & play
